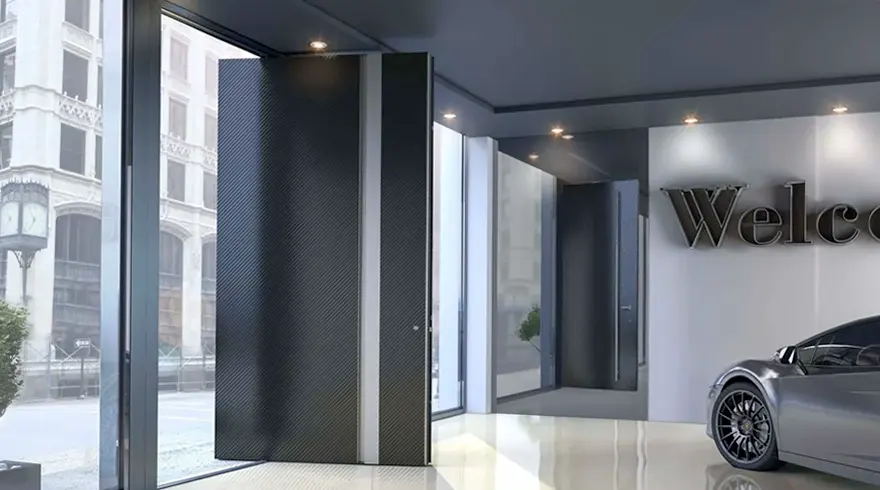

ALUMIL creates new horizons for modern residential and industrial design thanks to the innovative design of the system SUPREME SD115 Pivot that offers extremely large entrance doors for an exceptional aesthetic result with a pure, minimalistic design and coplanar surfaces.
The system SUPREME SD115 Pivot provides an outstanding new feeling of brightness and connection between internal and external environments, rendering the system unique in concept and design.
The innovative design of the system, alongside the state-of-the-art equipment, provide the prerequisites for prestigious entrance doors with high aesthetics, exceptional quality and outstanding performances in terms of security, insulation, and functionality.
Advantages
- High security level
- Modern design
- Maximum energy saving thanks to the exceptional thermal
- Ease of access ideal for people with disabilities and children
- Exceptional sound insulation
- Ease of use and high functionality
Generic
- Thermal Insulation: Yes
- Exterior Shape: Flat
- Surface Treatments: Powder Coating, all powder coating, Polished anodizing, Anodizing colors, Wood sublimation
Performance
- Burglar Resistance: RC3
Features
- UF: from 0,75 W/m²K
- Sash Depth: 115 mm
- Sash Weight: up to 250 Kg
- Minimum Visible Aluminium Face Height: 70 mm
- Types Of Typology: Single leaf pivot doors
Technical Specifications
- Frame Depth: 115 mm
- Maximum Glazing Thickness: 115 mm
- Mechanism: Multiple points lock
- Sealing Method: Perimetrical at 3 levels with EPDM gaskets
- Minimum Threshold Height: 7 mm
- Type Of Thermal Insulation: Polyamides 34 mm width, ALUMIL Energy bar, Insulation foam
